PLASTIC WELDING EQUIPMENT
MAX-18
-
Brushless preheating blower with standby-function and automatic shut-down.
-
Easy-to-use digital menu with automatic temperature control.Dual beam high-power LEDs.
-
3 different material presets plus more customizable program options.
-
360-degree rotatable welding shoe.
-
Integrated machine stand.
-
Digital display menu with diagnostic parameters.
-
Digital temperature display and adjustment.
-
WIFI / Bluetooth connectivity.
-
Integrated eye hook for hanging with counterbalance.

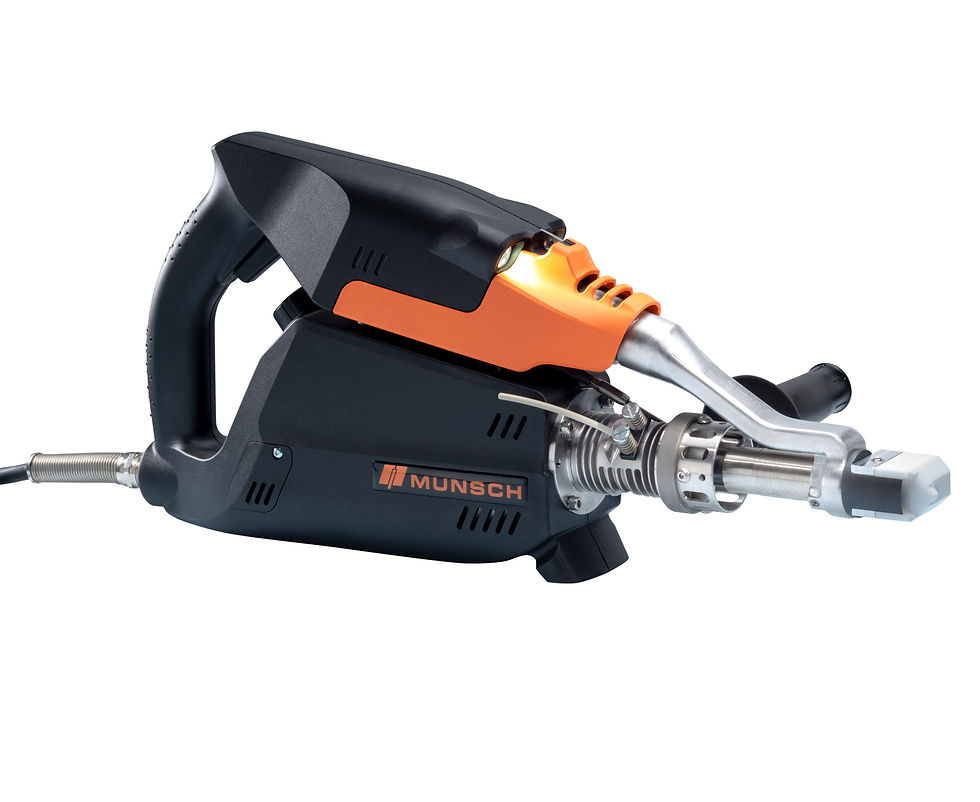

The MAX-18 extruder is quiet, lightweight, and versatile. It is equipped with digital controls that allow you to easily weld materials with a thickness of up to 20 mm. The welding shoe can rotate 360°, and the front handle is infinitely adjustable. The versatile body style enables welding in virtually any position, making it ideal for tight spaces. The Integrated high-power LEDs provide excellent illumination in the workspace. The efficient design enables intuitive switching to standby mode, reducing noise and minimizing wear and tear on the machine. This feature has the potential to decrease energy usage by up to 50%. Additionally, once the machine has cooled down sufficiently, the preheat blower automatically shuts off.
To enhance ergonomics, the unit includes an integrated eye hook for counterbalancing or hanging the device when necessary.
*MEK Model indicates pre-heater can be used with outside air source such as air pump or air compressor. Most extruder models can be ordered in this configuration.
Technical Data
Max. welding capacity:
1.8 kg/h, Ø 4mm
1.1 kg/h, Ø 3 mm
Welding material:
PP / PE / PVDF
Material type:
Round rod Ø 3 / 4 mm
​
Application range:
Thicknesses from 4 – 15 mm
​
Weight:
5.5 kg
Length:
470 mm
​
Electronic Speed control:
yes
​
Mass heating:
400 W
​
Powerbox needed:
No
​
Preheating:
2300 W
